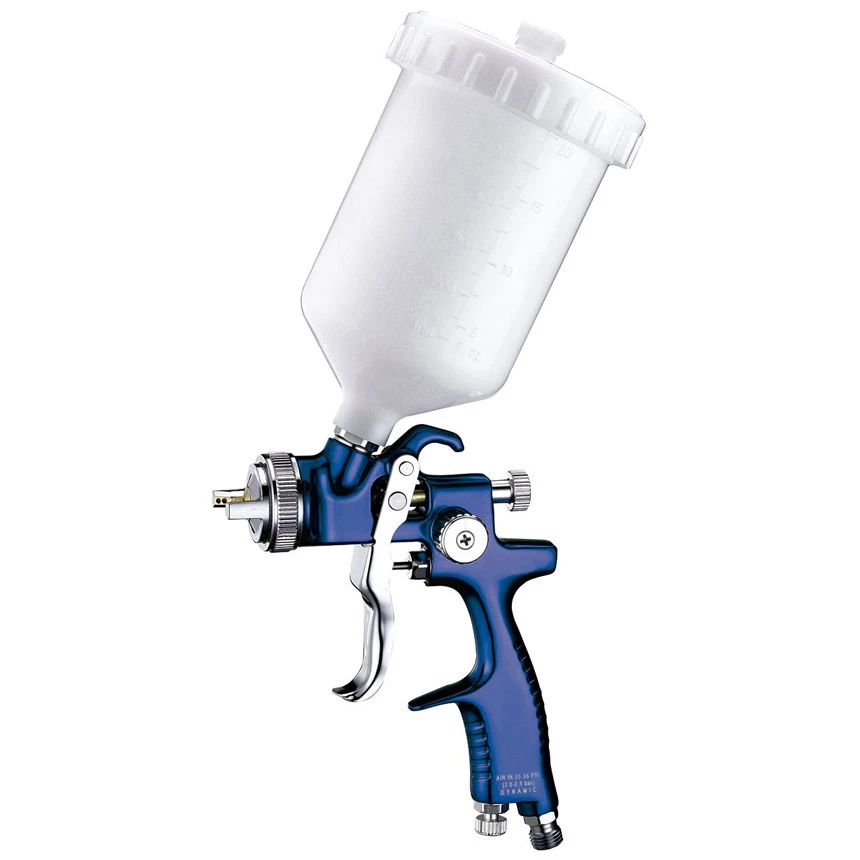

Astro Pneumatic EuroPro HE Spray Gun With Plastic Cup

The Astro EuroPro HE Spray Gun w/ Plastic Cup deploys High Efficiency advanced technology to yield a distinct pattern that provides good coverage and optimal overlapping. This EuroPro HE gun results in low overspray and superior atomization for high-quality paint finishes. This spray gun is lightweight and stays durable through use, thanks to the forged body. An anodized exterior provides good corrosion protection while a slick finish makes cleaning quick and easy.

A soft trigger pull minimizes fatigue and enables a smooth operation. The lubricated adjustment knobs provide good control over the spray. The needle and fluid tip are made of stainless steel for a superior, long-lasting performance. The quick thread technology requires just one turn for locking or unlocking the air cap. Three turns help in locking or unlocking the fluid tip. Thanks to the wide threads on the cup, cleaning is easy. The Astro EuroPro HE Spray Gun w/ Plastic Cup is compatible with most disposable and traditional cup systems.

Key Features of the Astro EuroPro HE Spray Gun w/ Plastic Cup:

• Lightweight and durable construction
• Stainless steel needle and tip
• Forged body enables long lasting performance
• Slick finish makes cleaning quick and easy
• Resists corrosion due to anodized finish
• Internal coated passages
• Innovative High Efficiency (HE) advanced technology
• High-quality atomization
• Good transfer efficiency
• Low paint overspray
• Uniform coverage and optimal overlapping
• Quick thread technology
• Wide threads make cleaning effortless
• Soft trigger pull lessens fatigue
• Lubricated adjustment knobs lend good control
• Choice of two tip sizes – 1.3mm or 1.5mm

Technical Specifications

• Nozzle Size: 1.3mm or 1.5mm
• Cup Capacity: 600ml
• Operation Pressure: 29psi
• Weight: 0.7lbs. (325g)
• Gun Dimensions W x H: 7″ x 5-34″ (175mm x 145mm)
• Avg. Air Consumption: 10.5 – 12.5cfm
• Air Inlet Thread NPT: 1/4″
• Required Compressor: 3 – 5hp
• Max. Pattern at 6″ to 8″ Distance: 11″ – 13″ (280-330mm)
• Air Hose I.D. Size: 6 – 8mm
