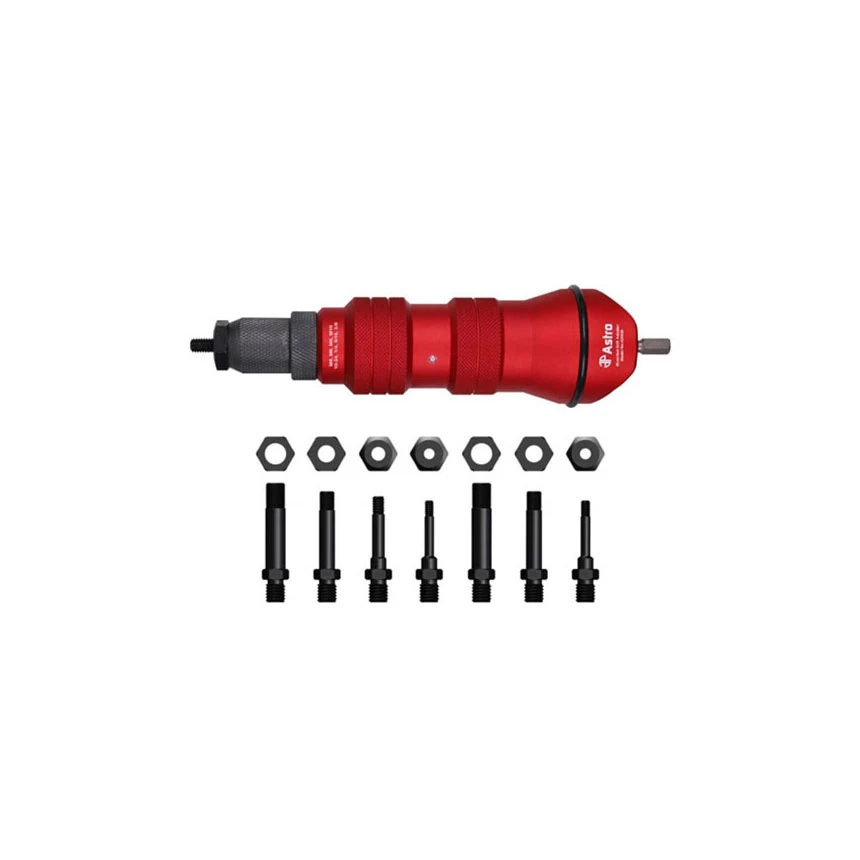

Astro Pneumatic XL Rivet Nut Drill Adapter Kit – ADN38

Easily convert cordless or corded drills into power
rivet nut setters

• Easily convert your cordless, pneumatic or corded drills into a power rivet nut setter
• Includes 10-24, 1/4-20, 5/16-18, 3/8-16 and M5, M6, M8 & M10
• Use 12V and up cordless drills for aluminum and steel rivet nuts, or 18V+ for larger sizes like M10 & 3/8″ and/or stainless (drills must feature torque limiting clutch)
• CNC machined from solid billet aluminum and features durable bearings
• Sizes above ¼”, or when setting stainless, may require you to grip the tool significantly tight to prevent tool spinning

Specifications

• Hex Shank Size: 1/4″
• Rivet Type: Rivet Nut
• Weight: 3 lbs

Requirements of cordless driving tool:

• Adjustable torque setting.
• Chuck capacity of 6.35 mm (1/4″) shank.
• Min 12V for aluminum, or M5 and 10-24 steel rivet nuts.
• Min 14.4V for steel rivet nuts in M6, M8, 1/4″ & 5/16″ or stainless in M5 or 10-24.
• Min Full-size 18V+ for M10 and 3/8″ rivet nuts and all other sizes in stainless steel.
• WEAR GLOVES
• Clutch provides a felt and/or audible indication of reaching max setting

Requirements of elctric or pneumatic driving tool:

• Adjustable torque setting.
• Chuck capacity of 6.35 mm (1/4″) shank.
• With maximum torque > 190 in/lbs for aluminum and steel rivet nuts in smaller sizes.
• With maximum torque > 400 in/lbs for stainless steel rivet nuts.
