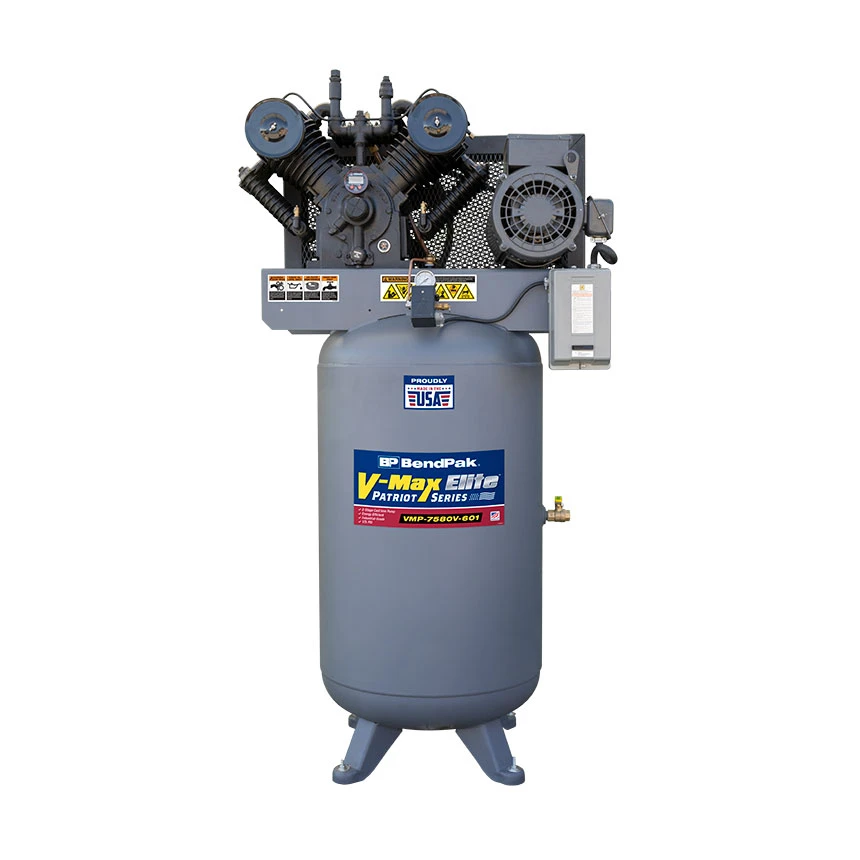

BendPak V-Max Elite™ Air Compressor

V-MAX ELITE ADVANTAGES:

7.5 HP energy-efficient motor
80-Gallon Vertical, 60Hz, 1-Phase
Extra-quiet, low-RPM pump – Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a “V-4” finned cylinder configuration that provides 360° cooling
Proven air-cooled design is economical, reliable and environmentally friendly.
Two compression rings and one oil control ring provide excellent oil control and high efficiency air delivery
Dual drive belts require less belt tension resulting in less load on pump bearings, longaer belt life and low vibration
Fully-enclosed belt guard
Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with a pressed-in sleeves
ASME rated tank
Large surface area and cooling fins on cylinders and forced-air after-cooler provides efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
Tapered roller main bearings provide full contact and support of the crankshaft and needle-type piston pin bearings properly distribute bearing loads
Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
Magnetic starter provides thermal overload protection and minimizes start loads providing long life and trouble-free operation
ASME rated safety valve protects the compressor from overpressure and safeguards the operator
Balanced flywheel and counterbalanced crankshaft results in nearly vibration-free operation
Readily accessible disc-valves do not require disassembly of compressor piping for easy accessibility and reduced maintenance cost and downtime
Corrosion resistant tubing for coolers, separators and valves for longer life and reduced maintenance.
Oversized ductile iron crankshaft provides extra strength and longer wear
High-density, die-cast aluminum alloy rods minimize reciprocating weight
Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap.
Automatic pressure switch provides auto start and stop
Integrated pressure unloader valves are built into the intake valve assembly on the compressor head reducing internal pump heat from initial start-up compression
Pressure gauge with service valve
Oversize replaceable air filters

*Ships by truck freight. Forklift required at time of delivery,If no Forklift is available you can request a liftgate for an additional charge.
$100 Limited Access Fee for deliveries to schools.
