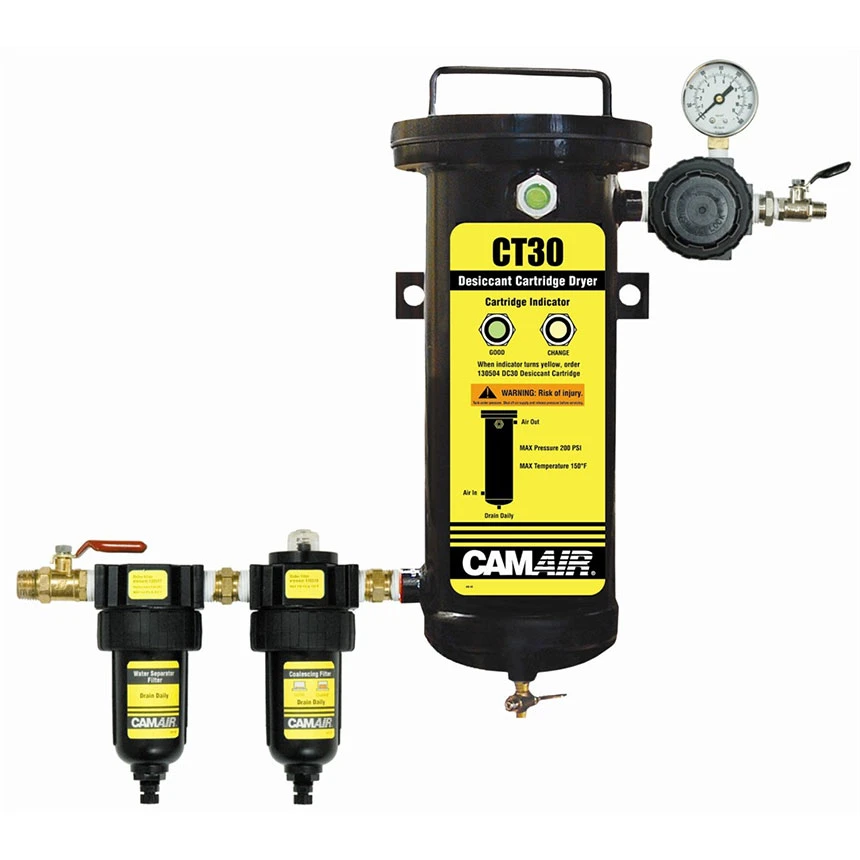

Devilbiss CamAir CT Plus 5-Stage Filter System – 130522

Worry free air filtration for top quality paint jobs.

The Devilbiss CamAir CT30 Series Desiccant Air Dryer/Filter System – CT-Plus is among the best desiccant dryer systems in the market and can remove impurities up to 40 microns. A desiccant compressed air system uses a desiccant to dry compressed air. A desiccant is made of a material that attracts moisture; the moisture attaches onto the surface of the desiccant material.

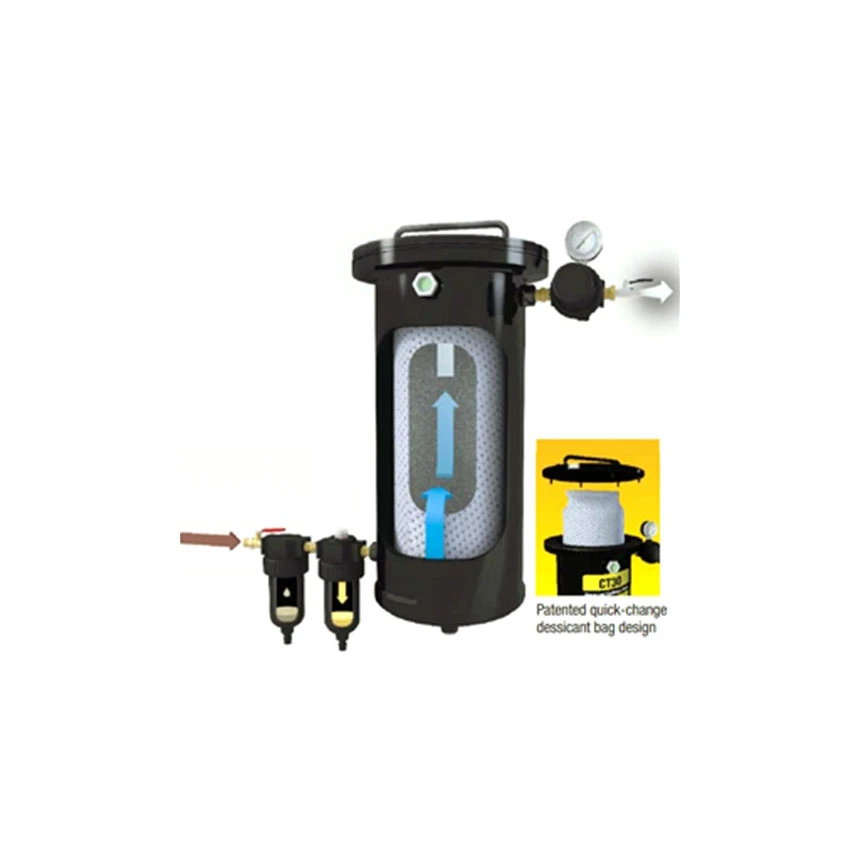

A desiccant dryer usually has two towers filled with a desiccant substance. While one tower dries the compressed air, the other tower regenerates the air to keep the process going. This particular dryer comes with an easy to replace cartridge bag. A humidity indicator shows green when dry and yellow when the desiccant is ready for replacement. It also comes with a manual drain.

The Devilbiss CamAir CT30 Series Desiccant Air Dryer/Filter System – CT-Plus is so efficient that it will allow you to go about your work without worrying about moisture causing unwanted damage to your tools and paint jobs; it can ensure consistently high-quality paint jobs, which is what your customers expect from you. The dryer’s first stage helps remove oil, water, and dirt down to 40 microns and the second stage features a coalescer that can eliminate oil vapors and particles to .01 microns.

It has an air inlet valve that stops any air from coming in without turning off your shop’s air. Another important fact about this dryer is the ease of use and maintenance; it is extremely durable and easy to take care of. The product is also portable and can be installed right before use, in any location.

Special Features

• Easy to replace cartridge bag
• Self-relieving regulator has an ergonomic design

Technical Specifications

• Air flow capacity: 30 CFM capacity at 100 PSI
• Air Inlet: 1/2″ NPT
• Air Outlet: 1/2″ NPT
• Maximum operating pressure: 200 PSIG (14 Bar)
• Maximum Temperature: 150°F (65.6°C)
• Water Vapor Removal: -40°F Dew point
• Particle Removal: .01 micron
• Portable and easy to install in any location
