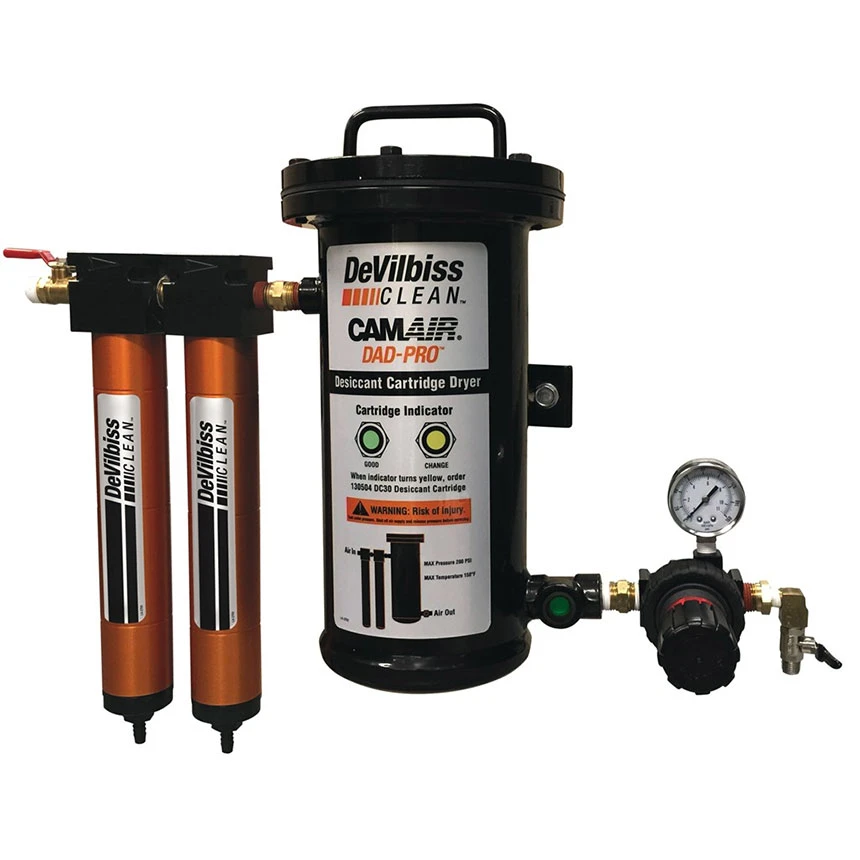

Devilbiss CamAir DAD-PRO Desiccant Drying System – 130546

The CamAir® DAD-PRO™ Desiccant Air Drying System provides worry free air filtration for top-quality paint jobs. Air enters the 2-stage filtration package where it is purged of water, oil and oil aerosols. Once cleaned, the air enters the desiccant tank to further remove any remaining water vapor.

• First stage filter removes oil, water and dirt down to 5 microns
• Second stage coalescer removes oil vapors and dirt particles down to .01 microns
• Desiccant tank removes water vapor and humidity down to a dew point of 40° F
• Desiccant is easy to replace
• Cartridge indicator: green is good, yellow needs to be changed

50 SCFM Water Separator Features:

• Aircraft aluminum filter heads, outer tube are anodized for extra corrosion resistance
• Spiral design stainless steel mesh uses centrifugal force to flush any remaining liquids to the outer tube for draining.
• Oversized inner barrel functions as the filter “drip leg”
• Low maintenance float drain

50 SCFM Oil Coalescing Filter Features:

• Aircraft aluminum filter heads, outer tube are anodized for extra corrosion resistance
• Element: 100% borosilicate glass microfibers are bonded together with a resin binder
• Low maintenance float drain

Technical Specifications

• Air Inlet: 1/2″ NPT (Female)
• Air Outlet: 1/4″ NPT (Male)
• Air Flow Capacity: 30 CFM
• Max. Operating Pressure: 175 PSI (12 Bar)
• Max. Temperature: 150°F (65.6°C)
• Humidity Indicator: Green- OK, Yellow- Replace Desiccant
• Water Vapor Removal: -40°F Dew point
• Partical Removal: .01 micron
• Manual Drain: Included
