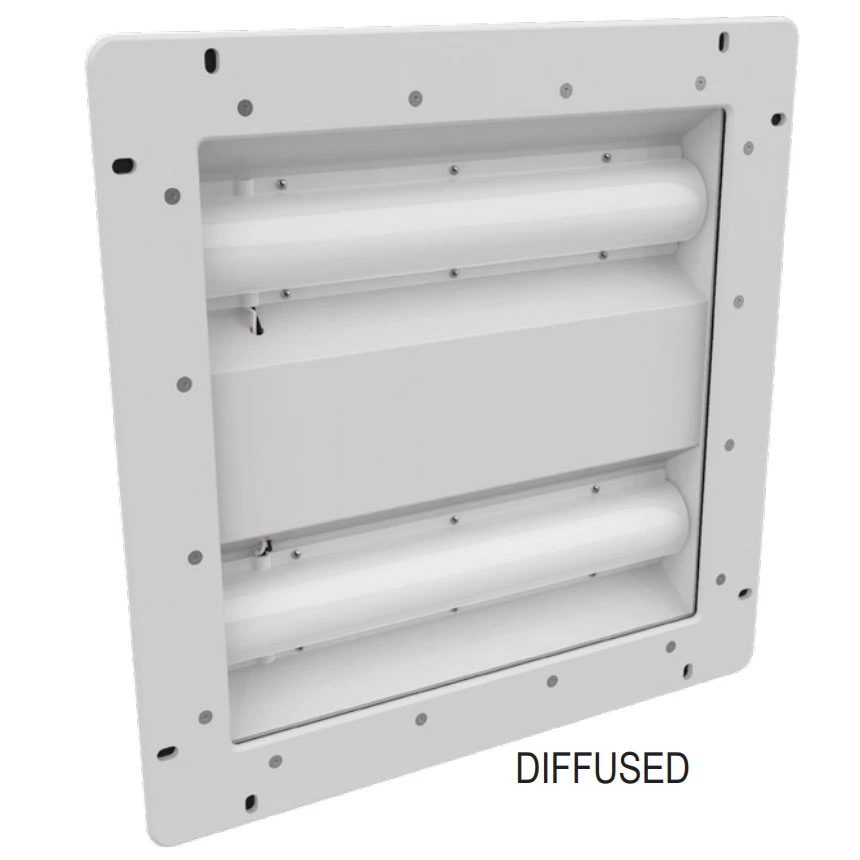

LDPI LE484 LED Paint Booth Light

Super Bright, Long Lasting LEDs!

Mount in Paint & Powder Booths, Blast Booths, and more!

The LE484 is a new approach to booth lighting. It is a lightweight, recessed mount, LED paint booth luminaire. The LE484 utilizes LED technology and redefines how booth lighting is done. It is made of a cast aluminum housing with diffused with dimming capabilities.

• Diffused
• Copper Free, Cast Aluminum Housing
• Impact Resistant Glass
• Durable Powder Coat White Finish
• 8 Ft. SJTOW-18/3 Wire Whip (Standard)
• Lightweight, thin, low-profile design
• 0-10V or DALI Digital Dimming

Technical Specifications

• Voltage:120-277V & 347-480V, 50/60Hz (0-10V Dimming)
• 5000K
• Voltage Dimming:
  • V1: 120-277VAC (50/60Hz) / 0-10V
  • V2: 347-480VAC (50/60Hz) / 0-10V
  • V3: 120-277VAC (50/60Hz) / DALI
• Source: 7500 Lm
• Options: Diffused (120°) or TIR Optic (60°)
• Weight: 18 lbs
• Light Dimensions: 18.11in x 18.11in x 2.13inD

Listings

• UL844 & CSA C22.2 No. 137.0 & 250.0
• CI D2 Grps A,B,C,D
• CII D1 Grps E,F,G
• CII D2 Grps F,G
• UL1598 Wet/Damp & Paint Spray
• -25°C to 55°C Ambient Rating (NonIC)
• -25°C to 45°C IC Rating
• IP67
• T5 (100°C/212°F)
• NEMA4X

This item requires a freight quote.  You will be contacted with your final shipping amount.  Deliveries to Residential addresses or deliveries that require a Lift Gate will incur additional charges.
