OTC Tools Drilling Guide System – 6982DGS

Removing a broken stud can be a tricky, time consuming undertaking. Pro’s know boring a well centered hole is key to using extractors effectively. OTC now offers a solution to assist you with drilling a perfectly centered hole! The 6982DGS from OTC allows you to anchor off a good stud to perfectly center a drilling alignment guide over a broken one. Place the slot of the rail guide over any good hole with appropriate size bushing and loosely secure with good stud. Slide/pivot opening in rail guide over broken stud and insert alignment guide for drilling. Tighten stud to hold alignment and begin drilling.

The OTC 6982DGS comes with 4 alignment guides for “progressive drilling”. To cover most applications we also provide 4 bushings in 6mm, 7mm, 8mm, and 10mm sizes.  The OTC 6982DGS is another great quality tool you’ll want in your tool box. Lifetime Warranty. Made in USA.

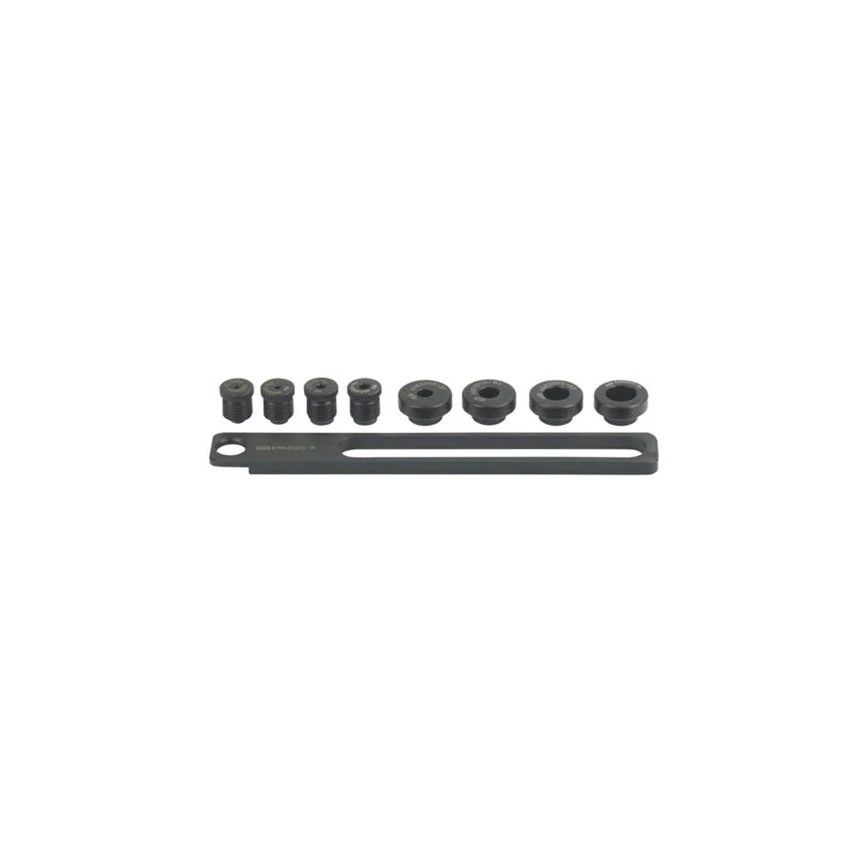

INCLUDES:

• P/N 6982DGS-1 – 4-Pc Bushing Set
• P/N 6982DGS-2 – 4-Pc Guide Set
• P/N 6982DGS-3 – Replacement Rail

FEATURES:

• Drill perfectly centered holes in broken studs
• Anchor rail guide on any open hole within reach of broken stud – 6 inch reach
• 4 bushings for common stud sizes – 6mm, 7mm, 8mm, and 10mm
• 4 drilling guides for progressive drilling – 1/16″, 3/32″, 1/8″ and 5/32″
• Conveniently stores in vinyl pouch – includes instructions
• Lifetime Warranty

PRODUCT DIMENSIONS:

• 9.7 × 3.7 × 0.8 in
