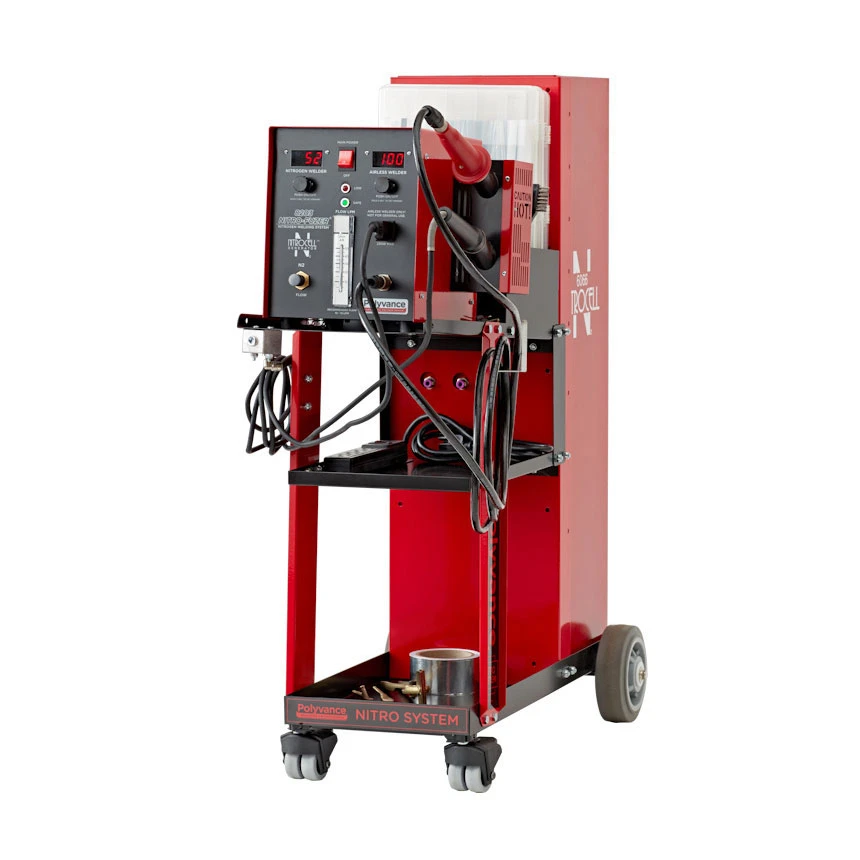

Polyvance Digital Nitro-Fuzer Nitrogen Plastic Welder W/ Cart, Single Gas – 8203

Single gas nitrogen plastic welder with Generator

The 8203 Nitro-Fuzer® combines Polyvance’s most advanced plastic welding equipment with the state-of-the-art Nitrocell nitrogen generator. The system includes everything needed to become immediately productive making strong and fast plastic repairs on virtually any type of plastic. Using nitrogen gas to weld plastic creates superior strength bonds by eliminating oxidation while the plastic is heated.

Make stronger repairs than with any other method

• Internal membrane nitrogen generator.
• Dual digital encoders for precisely and repeatably controlling the nitrogen temperature.
• Analog flow gauge for repeatable performance every time.
• Precision flow valve for nitrogen flow control.
• Element protection circuitry to help prevent burning out heating elements.
• Compact, easy-to-handle welding torch gets into tight spots with no user fatigue.
• Quick-change hose and handle assembly.
• Easy-to-use, intuitive controls.
• Integrated airless welder to allow for repair of thermoset PUR.
• Easily replaceable heating element.
• Heavy-duty, made-in-USA welding cart with built-in holders for heating elements and tools.
• Air manifold with auxiliary outlet for attachment of air tools.
• Integral power strip.
• Panel mounted circuit breaker
• Programmable start-up settings
• 200 watt airless welder element with ceramic core
• 550 watt air/nitrogen heating element
• 6066 Nitrocell Nitrogen Generator
• Welding rod and tool storage compartments
• Electrical: 110V/60Hz – 750 watts (Max)
• Maximum inlet air pressure: 130 PSI (9 bar)

Includes:

• Welding cart, assembly required
• 1 – 6145 Hand seamer tool
• 1 – Aluminum tape 2″ x 10yd
• 1 – 6148 Bumper rollers
• 1 – 6146 Bumper Pliers
• 1 – 6061-1 Nitrogen welding system cover
• 1 – Folding accessory shelf
• 3- Welding rod organizer cases
• Welding Rods:
  • 30 pieces of R02-01-XX-NT – Polypropylene, 1/8 inch (3mm) diameter, Natural
  • 30 pieces of R02-04-XX-NT – Polypropylene, 3/8 inch (9.5mm) X 1/16 inch (1.6mm), Natural
  • 15 pieces of R02-05-XX-NT – Polypropylene, 5/8 inch (15.8mm) X 1/16 inch (1.6mm), Natural
  • 30 pieces of R02-07-XX-NT – Polypropylene, 13/64 inch (5mm) X 1/16 inch (1.6mm), Natural
  • 15 pieces of R02-08-XX-NT – Polypropylene, 1/4 inch (6mm) X 1/4 inch (6mm) Corner Rod, Natural
  • 30 pieces of R02-01-XX-BK – Polypropylene, 1/8 inch (3mm) diameter, Black
  • 30 pieces of R02-04-XX-BK – Polypropylene, 3/8 inch (9.5mm) X 1/16 inch (1.6mm), Black
  • 15 pieces of R02-05-XX-BK – Polypropylene, 5/8 inch (15.8mm) X 1/16 inch (1.6mm), Black
  • 30 pieces of R02-07-XX-BK – Polypropylene, 13/64 inch (5mm) X 1/16 inch (1.6mm), Black
  • 15 pieces of R02-08-XX-BK – Polypropylene, 1/4 inch (6mm) X 1/4 inch (6mm) Corner Rod, Black
  •  5 pieces of R03-01-XX-WH – ABS, 1/8 inch (3mm) diameter, White
  •  5 pieces of R03-01-XX-BK – ABS, 1/8 inch (3mm) diameter, Black
  •  5 pieces of R03-04-XX-WH – ABS, 3/8 inch (9.5mm) X 1/16 inch (1.6mm), White
  • 10 pieces of R04-01-XX-NT – LDPE, 1/8 inch (3mm) diameter, Natural
  • 10 pieces of R04-04-XX-NT – LDPE, 3/8 inch (3mm) X 1/16 inch (1.6mm), Natural
  • 10 pieces of R05-01-XX-GY – TPO, 1/8 inch (3mm) diameter, Gray
  • 10 pieces of R05-04-XX-GY – TPO, 3/8 inch (9.5mm) X 1/16 inch (1.6mm), Gray
  • 15 pieces of R07-01-XX-GY – Polycarbonate, 1/8 inch (3mm) diameter, Natural
  •  5 pieces of R07-04-XX-GY – Polycarbonate, 3/8 inch (9.5mm) X 1/16 inch (1.6mm), Natural
  • 10 pieces of R12-01-XX-NT – HDPE, 1/8 inch (3mm) diameter, Natural
  • 10 pieces of R12-04-XX-NT – HDPE, 3/8 inch (3mm) X 1/16 inch (1.6mm), Natural
  • R10-04-03-BK FiberFlex Rod;
