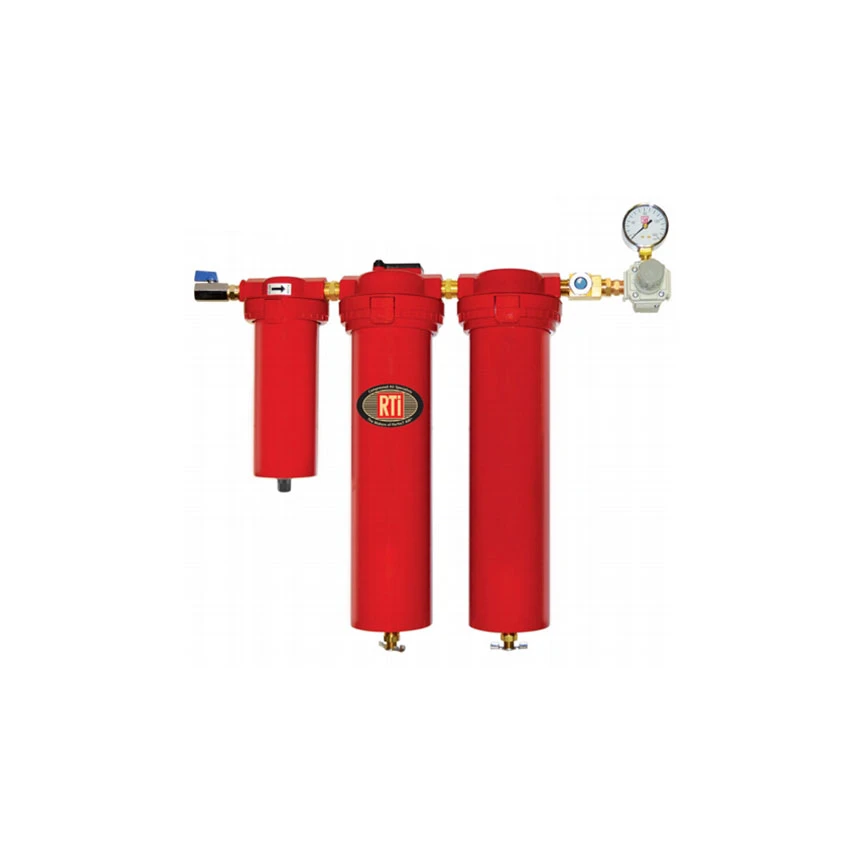

RTI Eliminator II Desiccant Dryer – EH7000-3R

Perfect for body shops with high levels of contamination

Suggested us: in prep stations and paint booths toremove water, dirt, oil, and water vapor

• Designed to provide continuous dry, oil-free air to -40ºF dew point
• 3 in 1: Activated carbon pre-filter for superior oil vapor removal and built-in final filter with contained desiccant cartridge, no desiccant dust migration
• Largest 0.01 micron coalescer on the market
• Tool-less spin on/spin off elements for easy maintenance, comes with two (2) PB-004 brackets for easy mounting
• Inverse Flow® Technology, low pressure drop design
• High flow 3/8″ NPT relieving regulator
• Automatic drain on first stage, manual petcock drains on second and third stages
• Replaement elements available (order below):
  • 1st Stage Replacement Element: 4P-060
  • 2nd Stage Replacement Element: 3C-090
  • 3rd Stage Replacement Element: DE401

Specifications

• Dryer Design: Manual, desiccant
• Recommended Temp: 100ºF
• Max. Pressure: 150 PSIG
• Dryer Capacity: -40ºF
• Filter Capacity: 0.01 micron and larger, Activated Carbon Oil, Absorption to 0.003ppm
• Flow Capacity: 30 SCFM @ 100 psi
• Differential Pressure: <5.0 PSID at rated flow
• Dimensions: 17″H x 16″W x 4.75″D
• Weight: 20 lbs.
