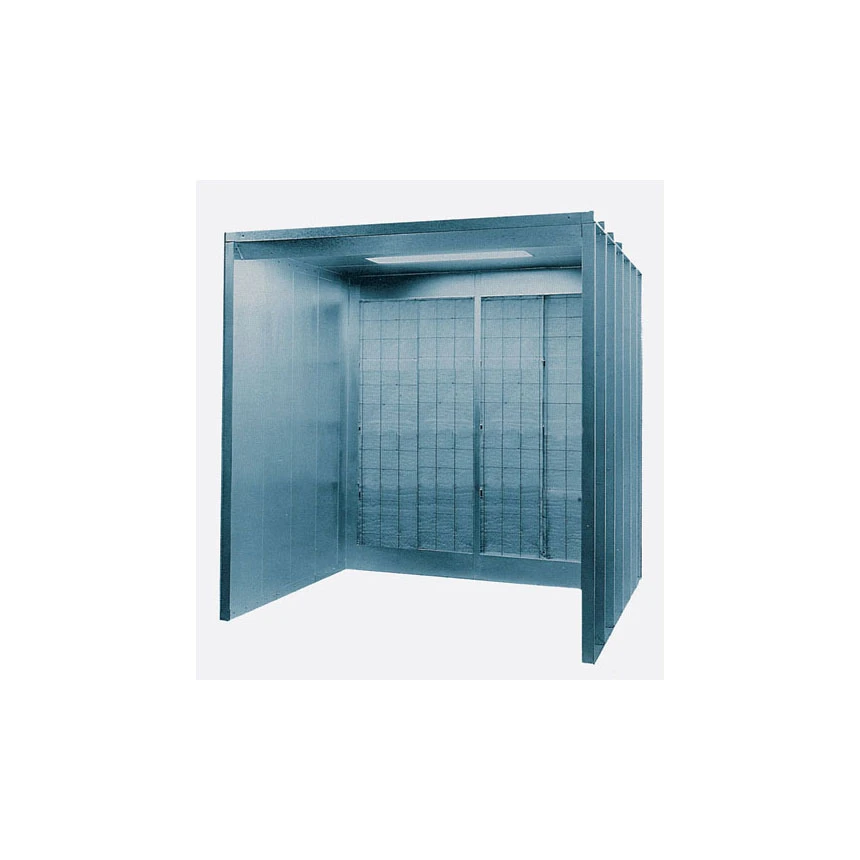

RTT Col-Met 4ft Open Front Industrial Booth

Open Front Industrial Spray Booths work well for batch type and automated production systems. The spray booth provides a cleaner and safer environment for all your finishing needs. The open front design of the spray booth allows air to be drawn in across the work area. The back of the booth has a filter bank that exhausts the air out. The dry arrestor filter traps airborne overspray particles before discharging filtered air through the exhaust system and atmosphere.

The booths are available in a variety of sizes ranging from 4′ x 7′ x 5′ to 20′ x 7′ x 7′. The wide range of the modular design enables you to meet virtually any production requirement. The spray booth meets NFPA 33 & OSHA 1910 guidelines (check your local codes for local permit requirements). Engineered for versatility, added convenience and high efficiency, the open front industrial spray booths come in an 18-gauge galvanized steel nut and bolt construction.

Features of the 4ft Wide – Open Front Industrial Spray Booths:

• 4ft Wide booths do not have any lights
• Heavy duty 18-gauge galvanized steel nut and bolt construction
• All panels and support members are precision punched for easy nut and bolt assembly
• Tubeaxial exhaust fans are designed to enable better airflow inside the booth
• Fan motors and bearings are sealed from the air stream of the exhaust
• Meets quality and performance standards (meets NFPA 33 & OSHA 1910 guidelines)
• Open front booths are great for spraying hoods, doors, deck lids etc.
• Made in USA

Available Sizes/Specifications:

8570:

• Interior Dimensions: 4’W x 7’H x 5’L
• Exterior Dimensions: 4’4″W x 7’2″H x 7’2″L
• # of Filters: 8
• Fan Diameter: 18″
• Fan HP: 0.75 HP
• SCFM @ 1/2 SP: 3,500

8541-0408:

• Interior Dimensions: 4’W x8’H x 5’L
• Exterior Dimensions: 4’4″W x 8’2″H x 7’2″L
• # of Filters: 8
• Fan Diameter: 18″
• Fan HP: 1.5 HP
• SCFM @ 1/2 SP: 6,000

8541-0410:

• Interior Dimensions: 4’W x 10’H x 5’L
• Exterior Dimensions: 4’4″W x 10’2″H x 7’2″L
• # of Filters: 10
• Fan Diameter: 18″
• Fan HP: 1.5 HP
• SCFM @ 1/2 SP: 5,000

8541-0412:

• Interior Dimensions: 4’W x 12’H x 5’L
• Exterior Dimensions: 6’4″W x 12’2″H x 7’8″L
• # of Filters: 12
• Fan Diameter: 24″
• Fan HP: 1.5 HP
• SCFM @ 1/2 SP: 6,000

Ships by truck freight. You will be contacted with shipping charges before order is processed.
Forklift required at time of delivery.
