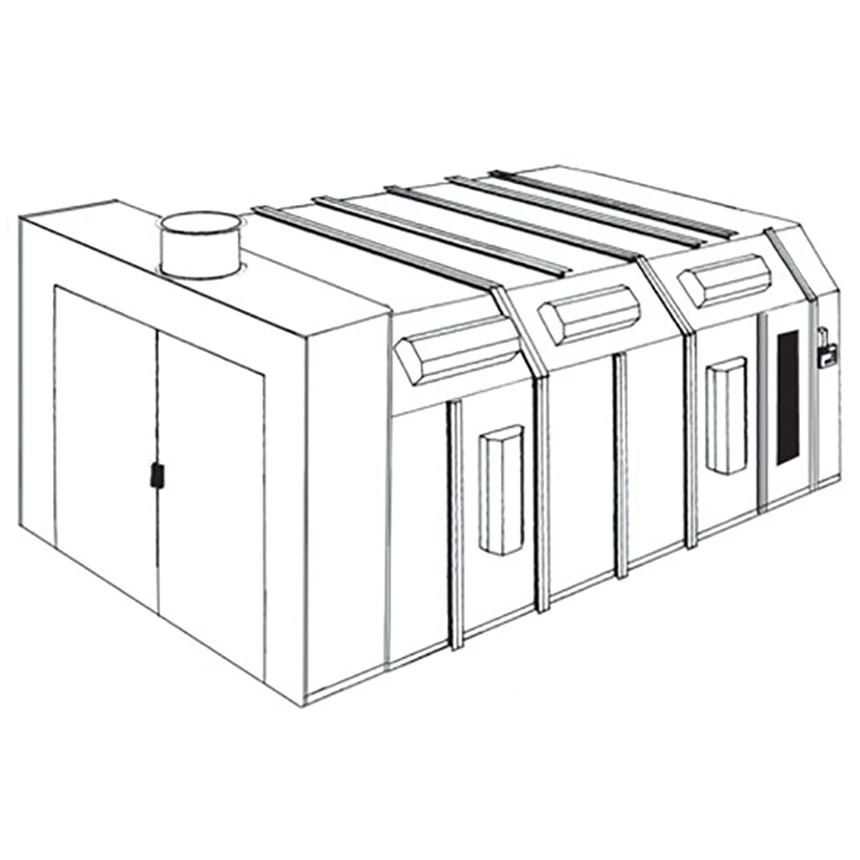

RTT Reverse Flow Paint Booth, Non-Pressurized, SB

The RTT Reverse Flow Paint Booth offers a reverse flow design that gives you a much cleaner paint job. The front door harbors the exhaust plenum, which repels dust and contaminants immediately without coming anywhere near the vehicle.

Some Key Features of the RTT Reverse Flow Paint Booth:

• Meets NFPA 33 & OSHA 1910 guidelines. (Check your local codes for local permit requirements).
• The inside area of the paint booth is 26′ x 14′ x 9′ and this is big enough for vans
• The booth contains an optional electrical kit that links the exhaust fan and the spray equipment
• The nut and bolt construction of the paint booth is designed with airtight 18 gauge galvanized steel
• For better air flow and lighting, the booth comes with a gabled roof design
• Now with energy efficient LED lights
• Uses 20″ x 20″ intake and 45″ x 84″ exhaust filters
• 30″ Tubeaxial Fan With Aluminum Spark-Proof Blades
• The booth comes with all the necessary hardware to complete assembly. You can easily assemble the entire booth in 2 to 3 days
• 2″ Flanges are provided with pre-punched holes for easy nut-and-bolt assembly
• 3 H.P. 3-Phase ODP/TEFC Motor delivers 12,600 CFM@1/2″ static pressure
• Windowed personnel door
• Magnetic starter (optional)
• Includes Dwyer Manometer Draft Gauge
• You can install the man Access door on either side
• Made in the USA

Need to Order Replacement Filters?

• Intake Filters:
• Blanket Exhaust Filters:

Indoor Use Only!

3 YEAR WARRANTY ON ALL RTT PAINT BOOTHS The quality and workmanship of RTT paint booths allows them to offer a Three (3) Year Warranty* provided the customer utilizes RTT high performance “A-Series” exhaust filters. Customers must also be registered, and you must have sales information that A-Series filtration was purchased in years 1, 2 and 3 of existence.

Ships by truck freight. You will be contacted with shipping charges before order is processed.
Forklift required at time of delivery.
